Custom Online Laser Cutting Service

Laser cutting is a manufacturing process where a laser beam pierces raw sheet stock to produce flat geometries. A range of metals are available, which work well for components such as washers, mounts, brackets, and housings.

Laser cutting is commonly used for:

Our Laser Cutting Process

Our laser cutting service and capabilities are designed around reliably producing quality parts on time.

1、Online quoting

● Upload your CAD file to receive an online quote
● Configure materials, finishes, and additional options

2、Expedited 1-day lead times

● Parts can fabricated and shipped in as fast as 1 day
● Standard 3-day lead times for quantities less than 50

3、Safe parts without sharp edges

● Parts deburred and edge debris removed prior to shipping (included in the price)
● Process ensures parts are safe to handle out of the box

4、One-stop shop for sheet metal components

● Formed geometries and geometries with hardware inserts available at 3-day lead times for quantities less than 50
● Basket of sheet metal components ship on same standard lead time
● Flatwork and formed parts produced with one supplier

5、Highly reliable cutting capability

Fiber optic lasers designed for metal cutting applications (vs. other material types) within thickness range of 0.024 in. – 0.250 in. (0.609mm – 6.35mm)

6、Manufacturing expertise

Have questions? Work with our team of sheet metal applications engineers to ensure your parts meet your requirements

Laser Cutting Design Guidelines

Follow these guidelines for flat, laser cut parts to ensure quality and accelerate production time.

Maximum Size

Thickness 0.134 – 0.250 in.: 39 in. x 19 in.

Thickness 0.024 in – 0.134 in.: 39 in. x 47 in.

Minimum Part Size0.25 in. x 0.25 in.

Material

Thicknesses

0.024 in. – 0.250 in.
Tolerances

+/- 0.005 in. for all features (except for hardware holes)

+0.003/-0.000 in. on hardware insert holes to ensure correct seating of inserts

Materials and Thicknesses for Laser Cut Parts

We offer the following metal materials for custom laser cut parts. Note that based on material thickness, maximum part size will vary.

MaterialGradeThicknesses Available
Aluminum

5052-H32

6061-T6

0.025 in. – 0.250 in. (0.635mm – 6.35mm)
Steel

CRS/HRPO

Galvanneal

Galvanized

0.025 in. – 0.250 in. (0.635mm – 6.35mm)
Stainless Steel

304-2B

304 #4

316-2B

0.025 in. – 0.250 in. (0.635mm – 6.35mm)
Copper

C1010

C1100

0.025 in – 0.125 in. (0.635mm – 3.175)
BrassC2600.025 in. – 0.125 in. (0.635mm – 3.175)

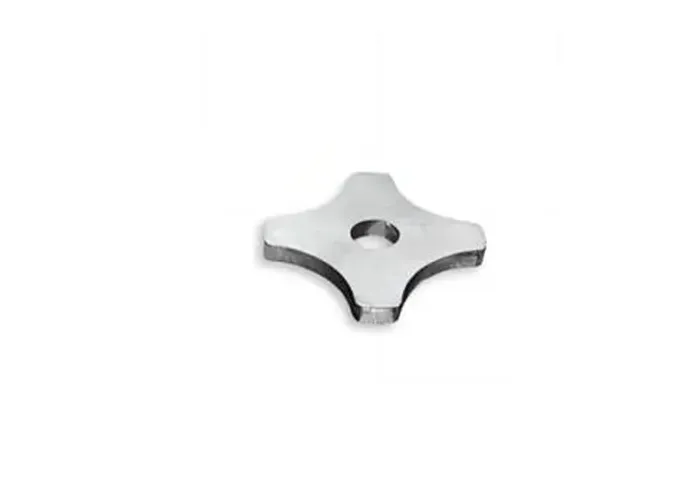

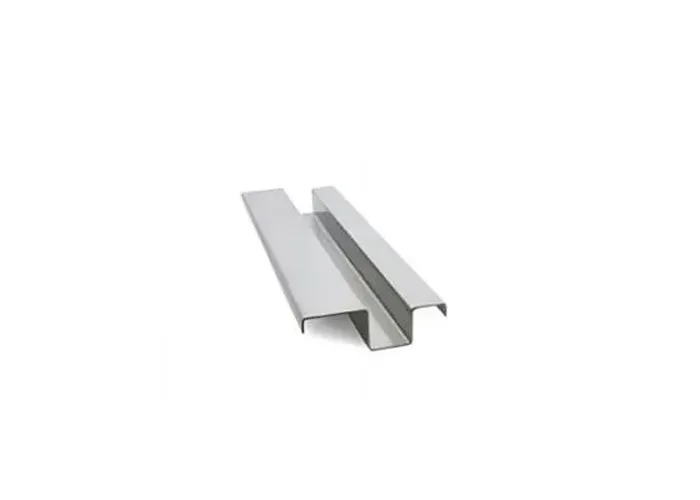

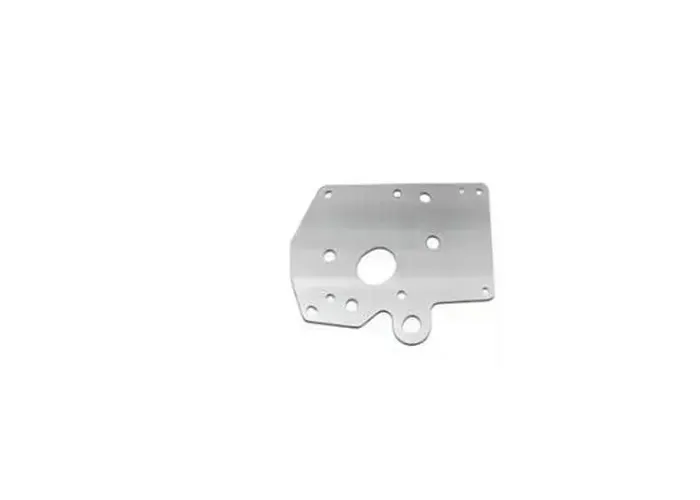

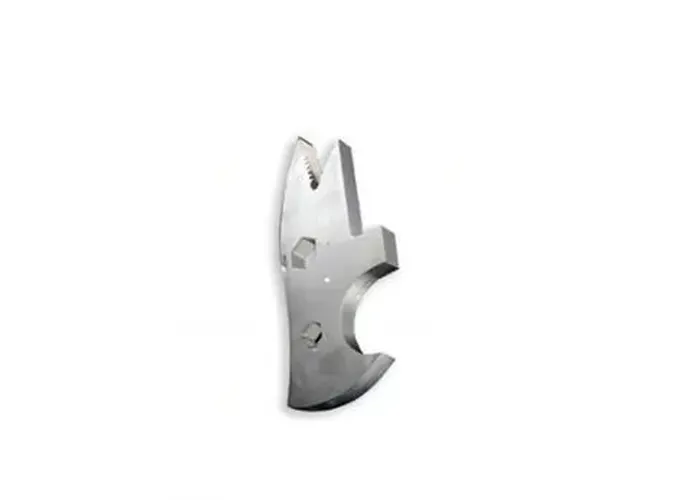

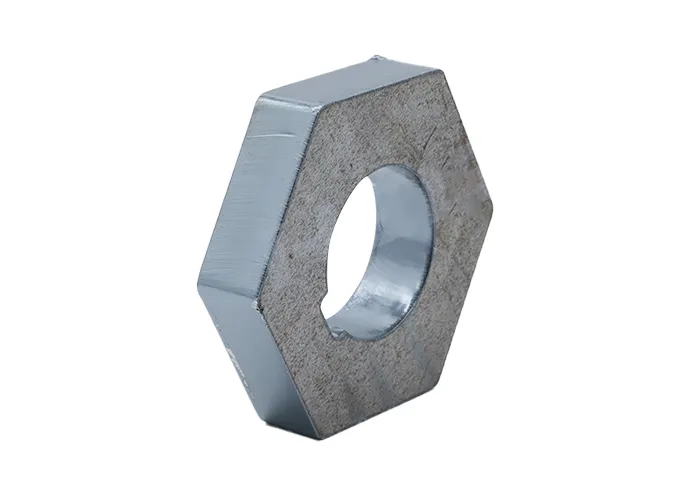

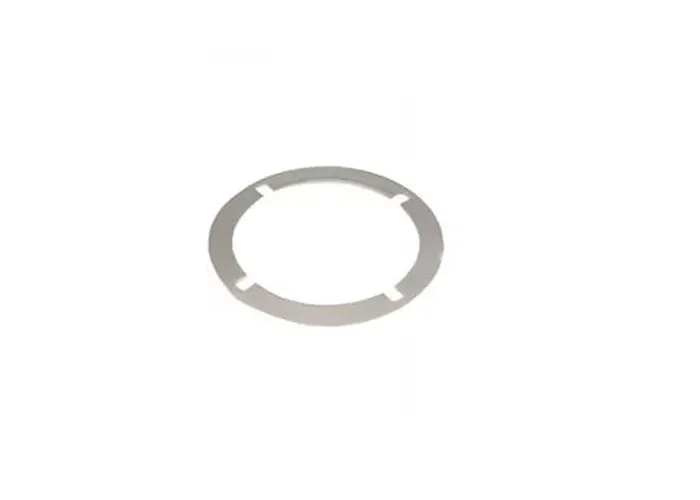

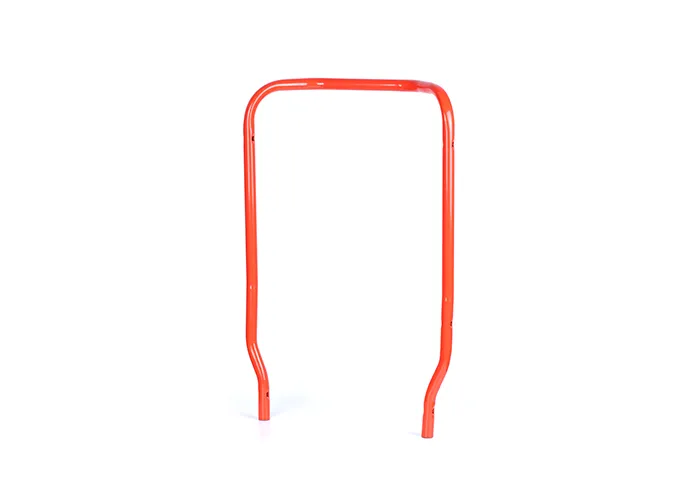

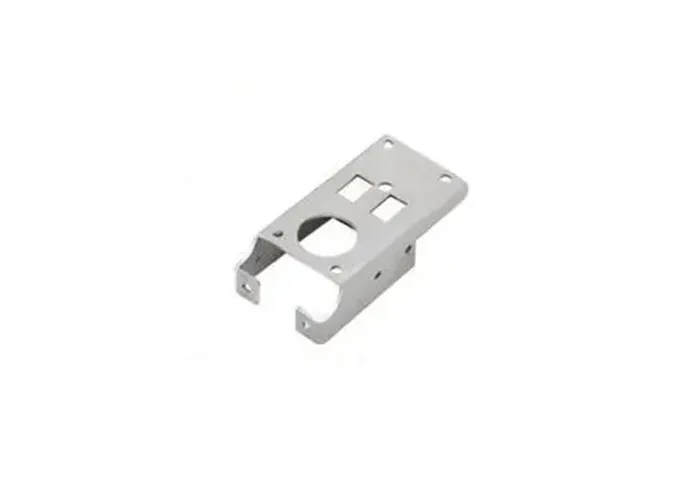

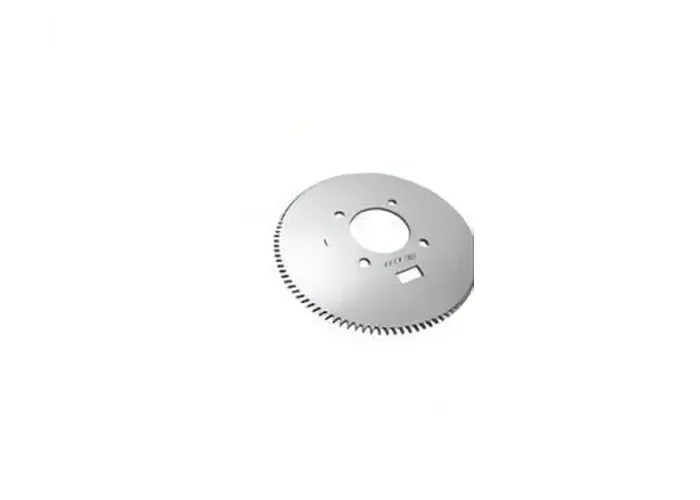

Gallery of LASER CUTTING
